![TE Connectivity 5788643-1 1650672](http://nguyenxuong.com/cdn/shop/products/F6803439-01_94e4ae82-925b-4274-9407-e0f6bcbc176d_444x234.jpg?v=1594402630)

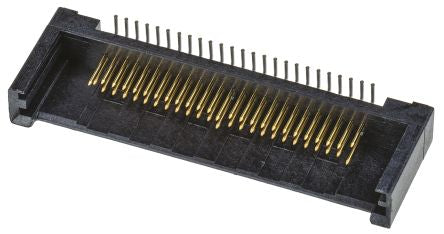

TE Connectivity 50 Way Compact Flash Memory Card Connector With Solder Termination [5788643-1]; 165-0672
0₫
Mã kho: 1650672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | Compact Flash Card |
Gender | Male |
Number of Contacts | 50 |
Number of Rows | 2 |
Pitch | 1.27mm |
Body Orientation | Straight |
Mounting Type | Surface Mount |
Contact Material | Brass |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 44.78mm |
Width | 14.0mm |
Depth | 5.51mm |
Dimensions | 44.78 x 14 x 5.51mm |
