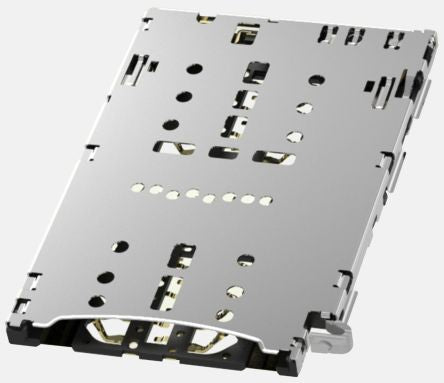

TE Connectivity 20 Way MicroSD, SIM Memory Card Connector With Solder Termination [2295782-1]; 136-0379
0₫
Mã kho: 1360379
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | MicroSD, SIM |
Gender | Male |
Number of Contacts | 20 |
Number of Rows | 1 |
Body Orientation | Straight |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold |
Termination Method | Solder |
Housing Material | Stainless Steel |
Length | 18.3mm |
Width | 27.95mm |
Depth | 1.52mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Dimensions | 18.3 x 27.95 x 1.52mm |
