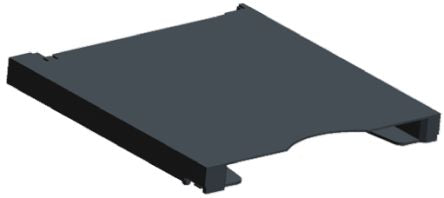

TE Connectivity 9 Way Right Angle SD Card Memory Card Connector With Solder Termination [1775059-1]; 161-6320
0₫
Mã kho: 1616320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | SD Card |
Gender | Male |
Number of Contacts | 9 |
Number of Rows | 1 |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Phosphor Bronze |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Thermoplastic |
Length | 29.25mm |
Width | 2.85mm |
Depth | 30.6mm |
Dimensions | 29.25 x 2.85 x 30.6mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +90°C |
