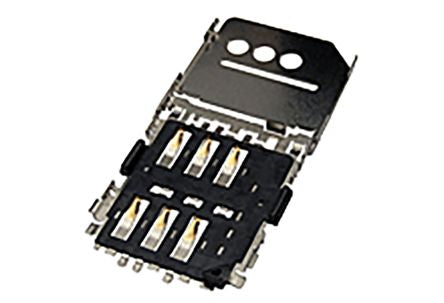

Molex 78800 Series 6 Way Push/Pull Micro Memory Card Connector With Solder Termination [78800-0001-TR1200]; 179-6586
by Molex
0₫
Mã kho: 1796586
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Micro SIM |
| Gender | Female |
| Insertion/Removal Method | Push/Pull |
| Number of Contacts | 6 |
| Pitch | 2.54mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 16.96mm |
| Width | 13.85mm |
| Depth | 1.5mm |
| Dimensions | 16.96 x 13.85 x 1.5mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Series Number | 78800 |
