![Molex 78723-1001-TR300 1796584](http://nguyenxuong.com/cdn/shop/products/Y1796584-01_444x292.jpg?v=1594157179)

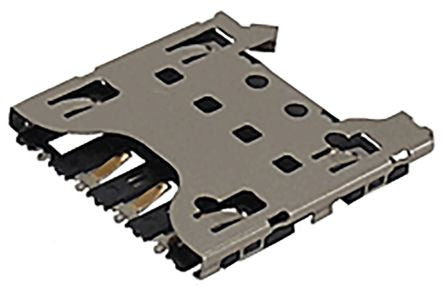

Molex 78723 Series 6 Way Push/Pull Micro Memory Card Connector With Solder Termination [78723-1001-TR300]; 179-6584
by Molex
0₫
Mã kho: 1796584
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | Micro SIM |
Insertion/Removal Method | Push/Pull |
Gender | Female |
Number of Contacts | 6 |
Pitch | 2.54mm |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 14.42mm |
Width | 10.96mm |
Depth | 1.35mm |
Minimum Operating Temperature | -40°C |
Dimensions | 14.42 x 10.96 x 1.35mm |
Series Number | 78723 |
Maximum Operating Temperature | +85°C |
