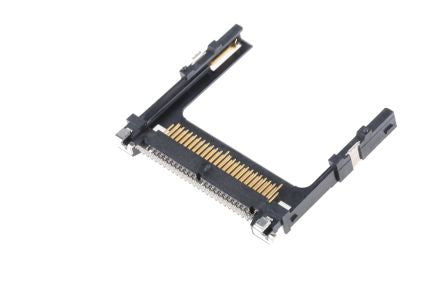

Molex 55364 Series 50 Way Right Angle Compact Flash Memory Card Connector With Solder Termination [55359-5029]; 167-1820
by Molex
0₫
Mã kho: 1671820
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Compact Flash Card |
| Gender | Male |
| Number of Contacts | 50 |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Palladium Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 47.23mm |
| Width | 6.0mm |
| Depth | 40.1mm |
| Maximum Operating Temperature | +90°C |
| Series | COMPACTFLASH |
| Dimensions | 47.23 x 6 x 40.1mm |
| Minimum Operating Temperature | -20°C |
| Series Number | 55364 |
