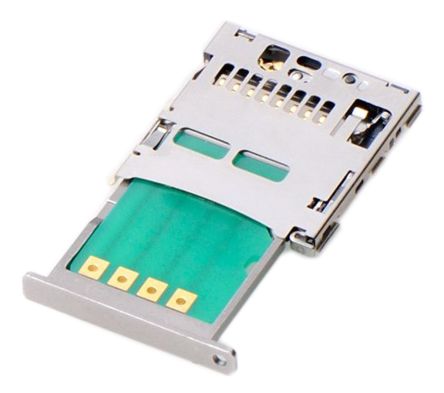

Molex Right Angle Surface Mount Micro SD Card Connector, with Solder Termination [504528-0892]; 918-6709
by Molex
0₫
Mã kho: 9186709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | Micro SD Card |
Gender | Female |
Number of Contacts | 8 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 15mm |
Width | 16.35mm |
Depth | 1.4mm |
Series | 504528 |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
Dimensions | 15 x 16.35 x 1.4mm |
