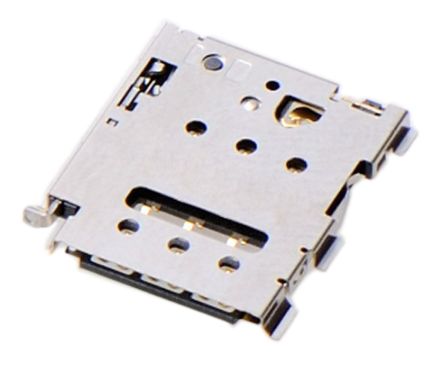

![Molex 504520-0691 9186702](http://nguyenxuong.com/cdn/shop/products/R9186702-01_363e97b0-da5f-405b-9e9d-02c282aa3c2a_444x366.jpg?v=1594036680)
Molex 6 Way Right Angle Nano SIM SIM Card Connector With Solder Termination [504520-0691]; 918-6702
by Molex
0₫
Mã kho: 9186702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | Nano Sim |
Gender | Female |
Number of Contacts | 6 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 13.4mm |
Width | 15.1mm |
Depth | 1.3mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
Dimensions | 13.4 x 15.1 x 1.3mm |
Series | 504520 |
