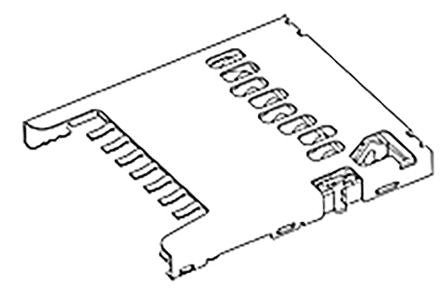

Molex 504077 Series 8 Way Push/Pull Micro SD Memory Card Connector With Solder Termination [504077-1891-TR600]; 179-6419
by Molex
0₫
Mã kho: 1796419
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Insertion/Removal Method | Push/Pull |
Gender | Female |
Number of Contacts | 8 |
Pitch | 1.1mm |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 11.32mm |
Width | 15.4mm |
Depth | 1.28mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Series Number | 504077 |
Dimensions | 11.32 x 15.4 x 1.28mm |
