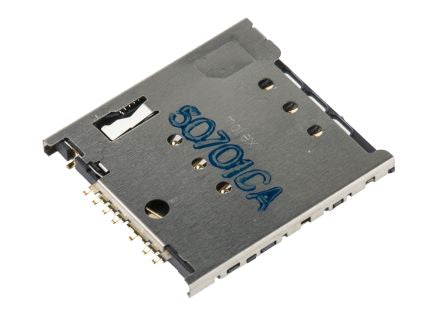

Molex 6 Way Horizontal Micro SIM Card Connector With SMT Termination [503960-0694]; 161-7992
by Molex
0₫
Mã kho: 1617992
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Micro SIM |
| Gender | Female |
| Number of Contacts | 6 |
| Number of Rows | 2 |
| Pitch | 1.0mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Termination Method | SMT |
| Housing Material | Liquid Crystal Polymer |
| Length | 15.5mm |
| Width | 1.42mm |
| Depth | 16.75mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 15.5 x 1.42 x 16.75mm |
| Maximum Operating Temperature | +85°C |
