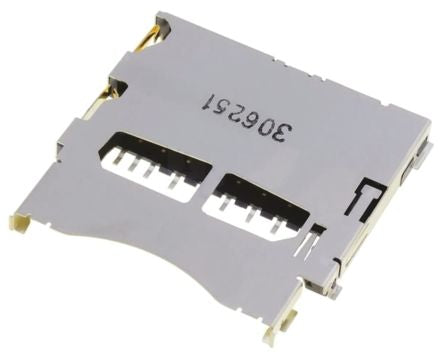

Molex 503500 Series 9 Way Right Angle Push/Push SD Card Memory Card Connector With Push In Termination [503500-0991]; 848-6730
by Molex
0₫
Mã kho: 8486730
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | SD Card |
Insertion/Removal Method | Push/Push |
Gender | Female |
Number of Contacts | 9 |
Number of Rows | 1 |
Pitch | 2.5mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Push In |
Housing Material | Polymer |
Length | 27.4mm |
Width | 27.4mm |
Depth | 2.95mm |
Minimum Operating Temperature | -25°C |
Series Number | 503500 |
Dimensions | 27.4 x 27.4 x 2.95mm |
Maximum Operating Temperature | +85°C |
