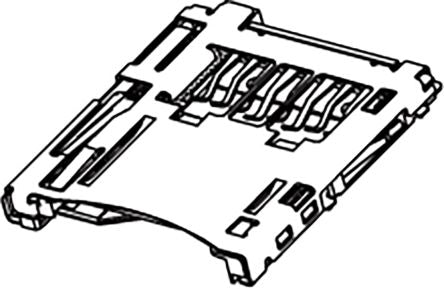

Molex 502774 Series 8 Way Push/Push Micro SD Memory Card Connector With Solder Termination [502774-0891-TR250]; 179-6482
by Molex
0₫
Mã kho: 1796482
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Male |
| Insertion/Removal Method | Push/Push |
| Number of Contacts | 8 |
| Pitch | 1.1mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 14.3mm |
| Width | 15.0mm |
| Depth | 1.8mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Series Number | 502774 |
| Dimensions | 14.3 x 15 x 1.8mm |
