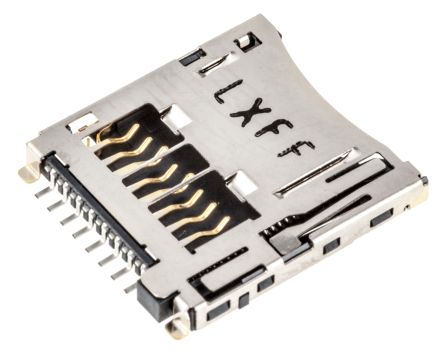

Molex 503182 Series 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination [502774-0891]; 720-6072
by Molex
0₫
Mã kho: 7206072
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | MicroSD |
Gender | Male |
Number of Contacts | 8 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 14.6mm |
Width | 1.8mm |
Depth | 16.0mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Series Number | 503182 |
Dimensions | 14.6 x 1.8 x 16mm |
Series | MICROSD CARD |
