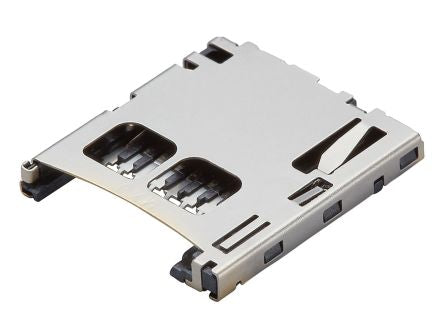

Micro SD card connector,SMT,push-push [502570-0893]; 188-8740
by Molex
0₫
Mã kho: 1888740
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insertion/Removal Method | Push/Push |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.1mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | SMT |
| Housing Material | Stainless Steel |
| Length | 15.4mm |
| Width | 13.8mm |
| Depth | 1.8mm |
| Series Number | 502570 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -20°C |
| Dimensions | 15.4 x 13.8 x 1.8mm |
