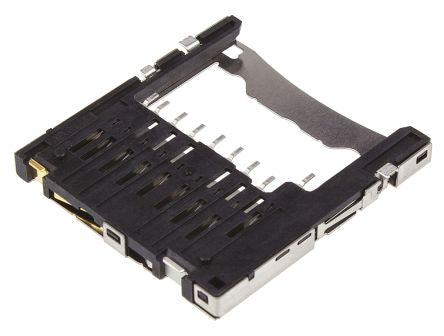

Molex 501189 Series 9 Way Right Angle SD Card Memory Card Connector With Solder Termination [500998-0900]; 487-9327
by Molex
0₫
Mã kho: 4879327
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SD Card |
| Gender | Female |
| Number of Contacts | 9 |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Polymer |
| Length | 28.9mm |
| Width | 3.1mm |
| Depth | 29.8mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 28.9 x 3.1 x 29.8mm |
| Series Number | 501189 |
| Maximum Operating Temperature | +90°C |
| Series | SD CARD |
