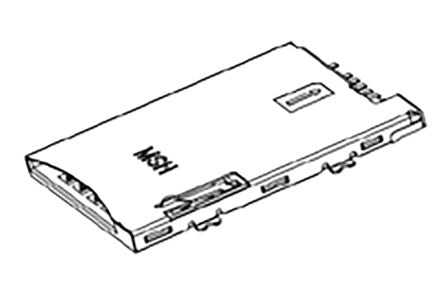

Molex 47603 Series 8 Way Push/Push SIM Card Connector With Solder Termination [47603-0001]; 178-9377
by Molex
0₫
Mã kho: 1789377
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SIM |
| Insertion/Removal Method | Push/Push |
| Gender | Male |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 26.3mm |
| Width | 19.35mm |
| Depth | 1.9mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Dimensions | 26.3 x 19.35 x 1.9mm |
| Series Number | 47603 |
