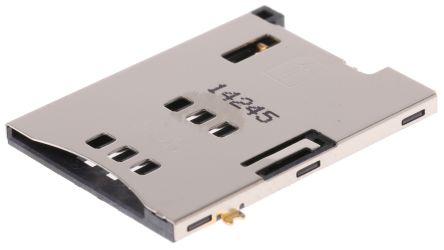

Molex 47553 Series 6 Way Horizontal SIM Card Connector With Solder Termination [47553-1001]; 800-7028
by Molex
0₫
Mã kho: 8007028
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SIM |
| Gender | Female |
| Number of Contacts | 6 |
| Pitch | 1.27mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 26.5mm |
| Width | 19.35mm |
| Depth | 2.34mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Series Number | 47553 |
| Dimensions | 26.5 x 19.35 x 2.34mm |
