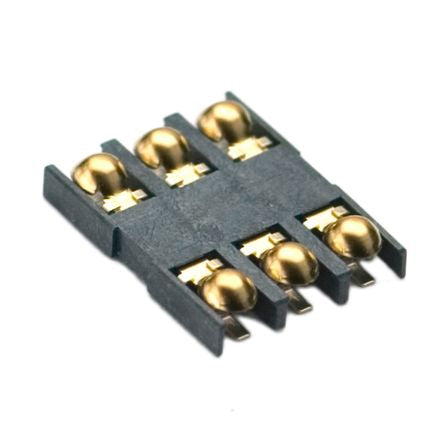

Molex 47550 Series 6 Way Micro SIM Card Connector With Solder Termination [47550-0001]; 123-2563
by Molex
0₫
Mã kho: 1232563
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Micro SIM |
| Gender | Male |
| Number of Contacts | 6 |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 10.0mm |
| Width | 7.62mm |
| Depth | 1.95mm |
| Dimensions | 10 x 7.62 x 1.95mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Series Number | 47550 |
