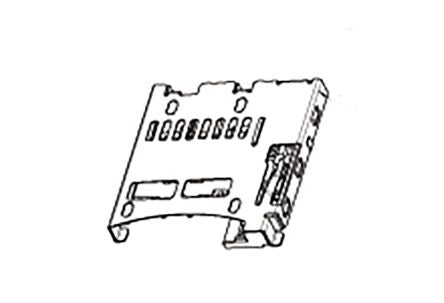

Molex 47352 Series 8 Way Push/Push Micro SD Memory Card Connector With Solder Termination [47352-1001-TR200]; 179-6480
by Molex
0₫
Mã kho: 1796480
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insertion/Removal Method | Push/Push |
| Gender | Male |
| Number of Contacts | 8 |
| Pitch | 1.1mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel, Tin |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 14.0mm |
| Width | 15.2mm |
| Depth | 1.88mm |
| Maximum Operating Temperature | +85°C |
| Series Number | 47352 |
| Dimensions | 14 x 15.2 x 1.88mm |
| Minimum Operating Temperature | -20°C |
