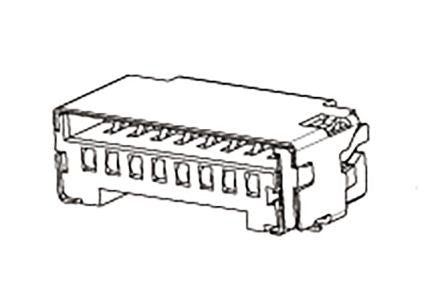

Molex 47309 Series 8 Way Push/Pull Micro SD Memory Card Connector With Solder Termination [47309-2651-TR375]; 179-6491
by Molex
0₫
Mã kho: 1796491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insertion/Removal Method | Push/Pull |
| Gender | Female |
| Number of Contacts | 8 |
| Pitch | 1.1mm |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 11.4mm |
| Width | 5.5mm |
| Depth | 2.65mm |
| Maximum Operating Temperature | +85°C |
| Dimensions | 11.4 x 5.5 x 2.65mm |
| Minimum Operating Temperature | -40°C |
| Series Number | 47309 |
