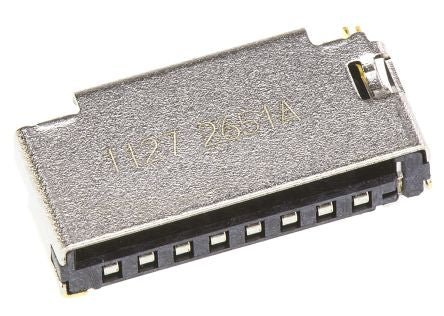

Molex 47309 Series 8 Way Right Angle Micro SD Memory Card Connector With Solder Termination [47309-2651]; 702-5485
by Molex
0₫
Mã kho: 7025485
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | MicroSD |
Gender | Female |
Number of Contacts | 8 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Contact Material | Phosphor Bronze |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Liquid Crystal Polymer |
Length | 11.4mm |
Width | 5.5mm |
Depth | 2.65mm |
Series | TRANSFLASH|MICROSD CARD |
Minimum Operating Temperature | -40°C |
Dimensions | 11.4 x 2.65 x 5.5mm |
Series Number | 47309 |
Maximum Operating Temperature | +85°C |
