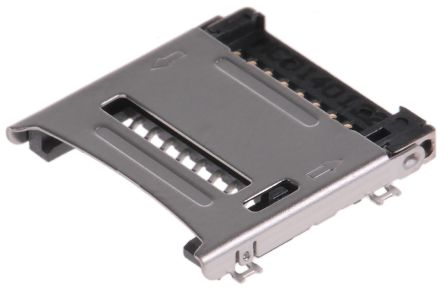

Molex 47219 Series 8 Way Horizontal Hinged Micro SD Memory Card Connector With Solder Termination [47219-2001]; 800-6845
by Molex
0₫
Mã kho: 8006845
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | MicroSD |
| Insertion/Removal Method | Hinged Cover |
| Gender | Female |
| Number of Contacts | 8 |
| Pitch | 1.1mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 13.6mm |
| Width | 14.5mm |
| Depth | 1.9mm |
| Series Number | 47219 |
| Dimensions | 13.6 x 14.5 x 1.9mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
