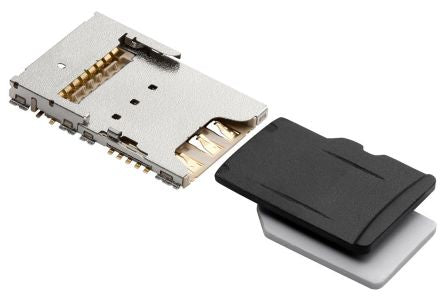

Molex 104642 Series 8 Way Micro SIM, MicroSD Memory Card Connector With Solder Termination [104642-1610]; 121-3817
by Molex
0₫
Mã kho: 1213817
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Micro SIM, MicroSD |
| Gender | Female |
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 1.1 (microSD) mm, 2.54 (micro-SIM) mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Palladium Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 13.2mm |
| Width | 2.1mm |
| Depth | 18.25mm |
| Minimum Operating Temperature | -40°C |
| Series Number | 104642 |
| Dimensions | 13.2 x 2.1 x 18.25mm |
| Maximum Operating Temperature | +85°C |
