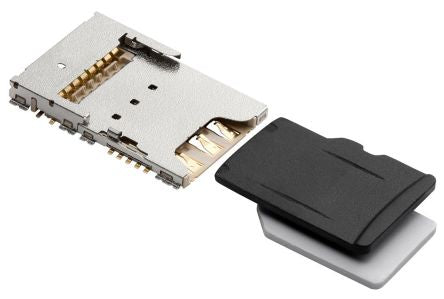

Molex 104239 Series 6 (Nano SD), 8 (microSD) Way MicroSD, Nano SIM Memory Card Connector With Solder Termination [104239-1430]; 121-3816
by Molex
0₫
Mã kho: 1213816
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | MicroSD, Nano SIM |
| Gender | Female |
| Number of Contacts | 6 (Nano SD), 8 (microSD) |
| Number of Rows | 1 |
| Pitch | 1.1 (microSD) mm, 2.54 (Nano-SIM) mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Palladium Nickel |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Length | 12.2mm |
| Width | 2.05mm |
| Depth | 17.9mm |
| Dimensions | 12.2 x 2.05 x 17.9mm |
| Minimum Operating Temperature | -40°C |
| Series Number | 104239 |
| Maximum Operating Temperature | +85°C |
