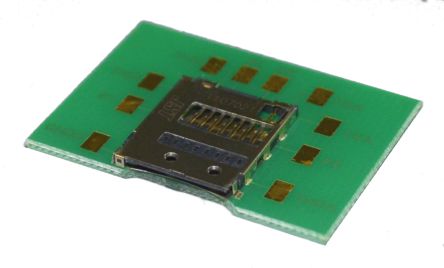

JST 8 Way Micro SD Memory Card Connector With Snap-In Termination [SDHR-8BRS-K-363-A0-P-ETB(HF)(A)]; 165-7903
by JST
0₫
Mã kho: 1657903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | MicroSD |
Gender | Female |
Number of Contacts | 8 |
Number of Rows | 1 |
Pitch | 1.1mm |
Body Orientation | Straight |
Mounting Type | PCB Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Snap-In |
Housing Material | Resin |
Length | 13.3mm |
Width | 15.3mm |
Depth | 1.4mm |
Series | SDHR |
Dimensions | 13.3 x 15.3 x 1.4mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
