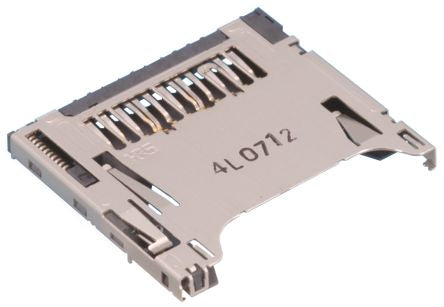

Hirose 11 Way Right Angle Mini SD Memory Card Connector With Solder Termination [DM2B-DSFW-PEJ-S]; 172-2523
by Hirose
0₫
Mã kho: 1722523
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Mini SD |
| Gender | Female |
| Number of Contacts | 11 |
| Number of Rows | 1 |
| Pitch | 1.3mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 21.1mm |
| Width | 23.3mm |
| Depth | 2.2mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 23.2 x 20.6 x 2.2mm |
| Series | DM2 |
