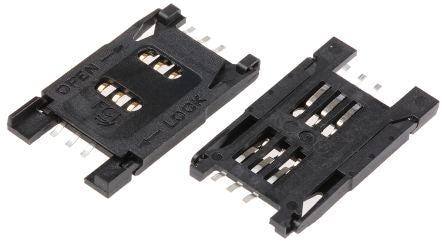

Amphenol FCI 6 Way Horizontal SIM Card Connector With Solder Termination [7111S2015X02LF]; 771-0221
by Amphenol FCI
0₫
Mã kho: 7710221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | SIM |
| Gender | Female |
| Number of Contacts | 6 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Body Orientation | Straight |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 29.5mm |
| Width | 17.2mm |
| Depth | 2.5mm |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | -40°C |
| Dimensions | 17.2 x 29.5 x 2.5mm |
