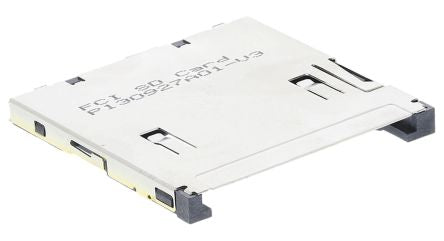

Amphenol FCI 10 Way Horizontal SD Card Memory Card Connector With Solder Termination [10067847-001RLF]; 771-0212
by Amphenol FCI
0₫
Mã kho: 7710212
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Card Type | SD Card |
Gender | Female |
Number of Contacts | 10 |
Number of Rows | 1 |
Pitch | 1.7 mm, 2.5 mm, 3.325mm |
Body Orientation | Straight |
Mounting Type | Surface Mount |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Housing Material | Thermoplastic |
Length | 28.5mm |
Width | 29.0mm |
Depth | 2.8mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
Dimensions | 28.5 x 29 x 2.8mm |
