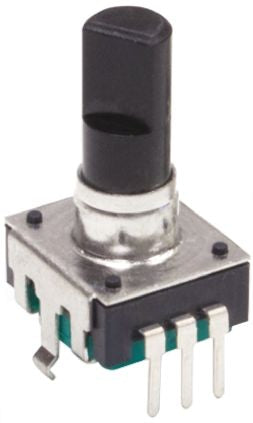

Bourns 12 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft (Not Indexed), Through Hole [PEC12R-4220F-S0012]; 167-5400
by Bourns
0₫
Mã kho: 1675400
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 12 |
| Shaft Style | Flat |
| Shaft Diameter | 6 mm |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Shaft Length | 20mm |
| Mounting Type | Through Hole |
| Index Output | Not Indexed |
| Maximum Operating Speed | 100rpm |
| Mounting Hole Diameter | 1 mm, 2 x 2.1 mm |
