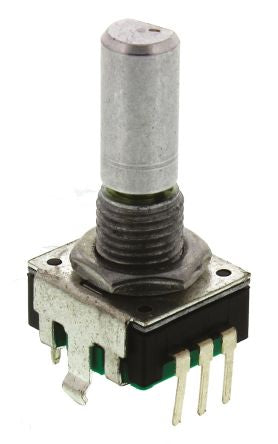

Bourns 18 Pulse Incremental Mechanical Rotary Encoder with a 6 mm Flat Shaft, Through Hole [PEC11R-4120F-S0018]; 167-5429
by Bourns
0₫
Mã kho: 1675429
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 18 |
| Shaft Style | Flat |
| Shaft Diameter | 6 mm |
| Encoder Reading | Incremental |
| Encoder Signal | Digital Square Wave |
| Mounting Type | Through Hole |
| Shaft Length | 20mm |
| Maximum Operating Speed | 60rpm |
| Mounting Hole Diameter | 1mm |
