Panduit lugs [PCSB250-2S-6Y], PAE414

Name: Panduit lugs [PCSB250-2S-6Y], PAE414
Brand: Panduit
SKU: PAE414
Price: 975100.0 VND
Availability: InStock

by Panduit

975.100₫

(Giá chưa VAT).

Mã kho: PAE414

Mã nhà sản xuất: PCSB250-2S-6Y

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit PCSB250-2S-6Y

MÔ TẢ SẢN PHẨM

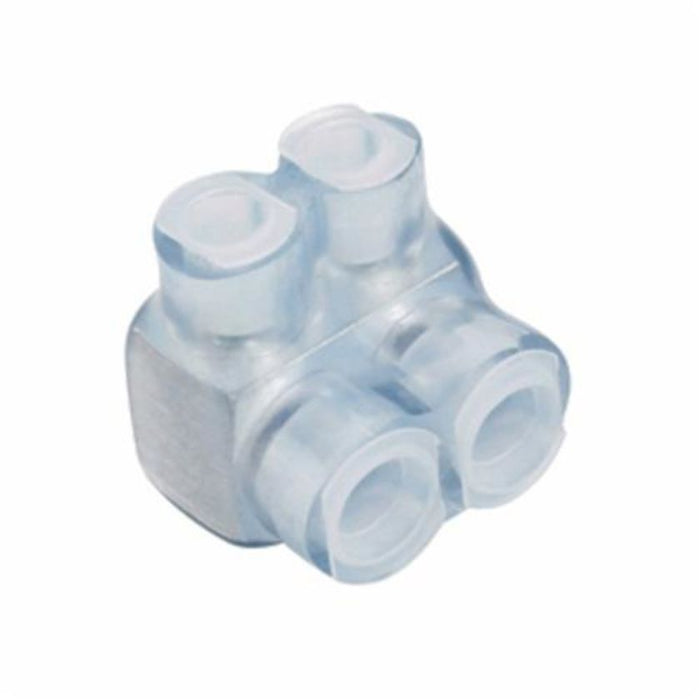

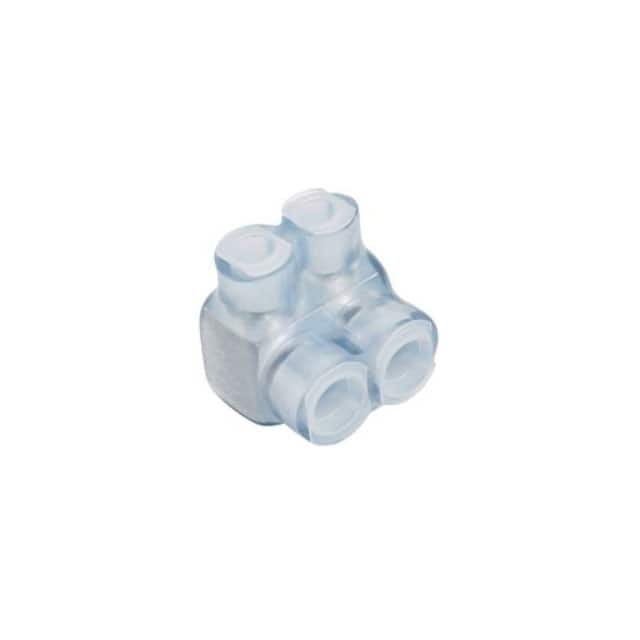

The PCSB250-2S-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visu

_THÔNG SỐ KỸ THUẬT:

Application	Aluminum or Copper Code Conductors
Note	PCSB250-2S-6Y replaces PCSB250-2S-6
Product Type	Multi-Tap Mechanical Connectors, Single Sided
Base Material	Aluminum
Minimum Aluminum Conductor Size (AWG)	10
Minimum Copper Conductor Size (AWG STR)	10
Maximum Aluminum Conductor Size (kcmil)	250
Maximum Copper Conductor Size (kcmil)	250
Number of Ports	2
Overall Height (In.)	2.13
Overall Height (mm)	54.1
Overall Length (In.)	2.03
Overall Length (mm)	51.5
Overall Width (In.)	2
Overall Width (mm)	50.8
Insulation Material	Clear PVC
Finish/Coating	Tin-Plated
Standards Met	UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Hex Size (In.)	5/16
Hex Size (mm)	7.9
Sub Brand	Pan-Lug™
Wire Strip Length (In.)	0.94
Wire Strip Length (mm)	23.8
Part Features	Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation.
