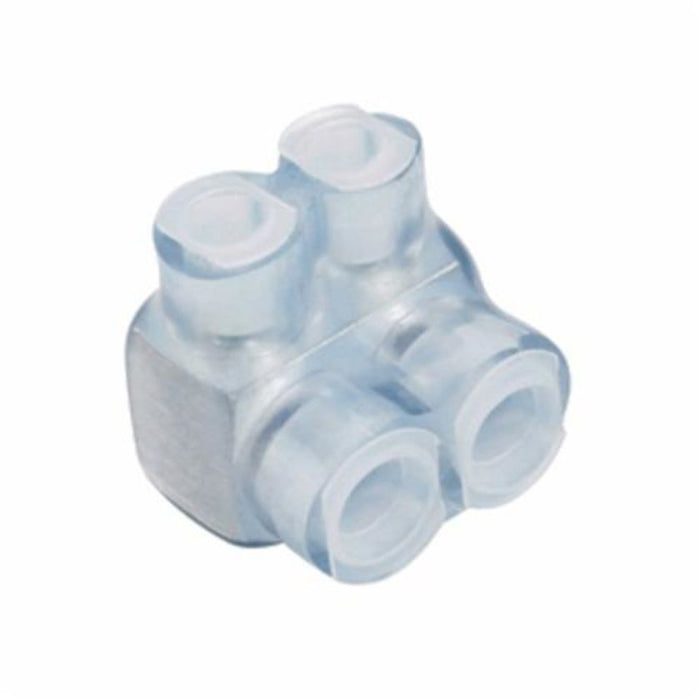

Panduit lugs [PCSB2/0-3S-6Y], PAE405

Name: Panduit lugs [PCSB2/0-3S-6Y], PAE405
Brand: Panduit
SKU: PAE405
Price: 755000.0 VND
Availability: InStock

by Panduit

755.000₫

(Giá chưa VAT).

Mã kho: PAE405

Mã nhà sản xuất: PCSB2/0-3S-6Y

Đơn vị tính: RL

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit PCSB2/0-3S-6Y

MÔ TẢ SẢN PHẨM

The PCSB2/0-3S-6Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visu

_THÔNG SỐ KỸ THUẬT:

Application	Aluminum or Copper Code Conductors
Note	PCSB2/0-3S-6Y replaces PCSB2/0-3S-6
Product Type	Multi-Tap Mechanical Connectors, Single Sided
Base Material	Aluminum
Minimum Aluminum Conductor Size (AWG)	14
Minimum Copper Conductor Size (AWG SOL)	14
Minimum Copper Conductor Size (AWG STR)	14
Maximum Aluminum Conductor Size (AWG)	2/0
Maximum Copper Conductor Size (AWG SOL)	10
Maximum Copper Conductor Size (AWG STR)	2/0
Number of Ports	3
Overall Height (In.)	1.38
Overall Height (mm)	35
Overall Length (In.)	2.19
Overall Length (mm)	55.6
Overall Width (In.)	1.31
Overall Width (mm)	33.2
Insulation Material	Clear PVC
Finish/Coating	Tin-Plated
Standards Met	UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C
UL Temperature Rating (°C)	90
Maximum Voltage (V)	600
Hex Size (In.)	3/16
Hex Size (mm)	4.76
Sub Brand	Pan-Lug™
Wire Strip Length (In.)	0.56
Wire Strip Length (mm)	14.2
Part Features	Each port pre-filled with oxide inhibiting joint compound seals out air and moisture to deter surface oxidation.
