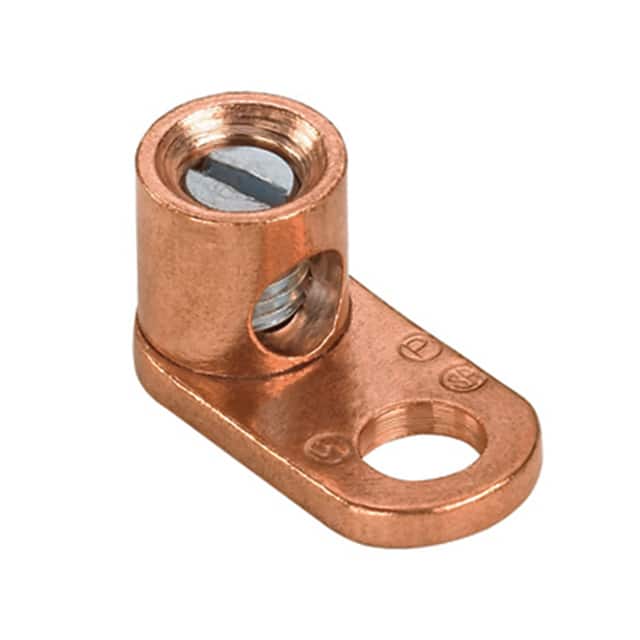

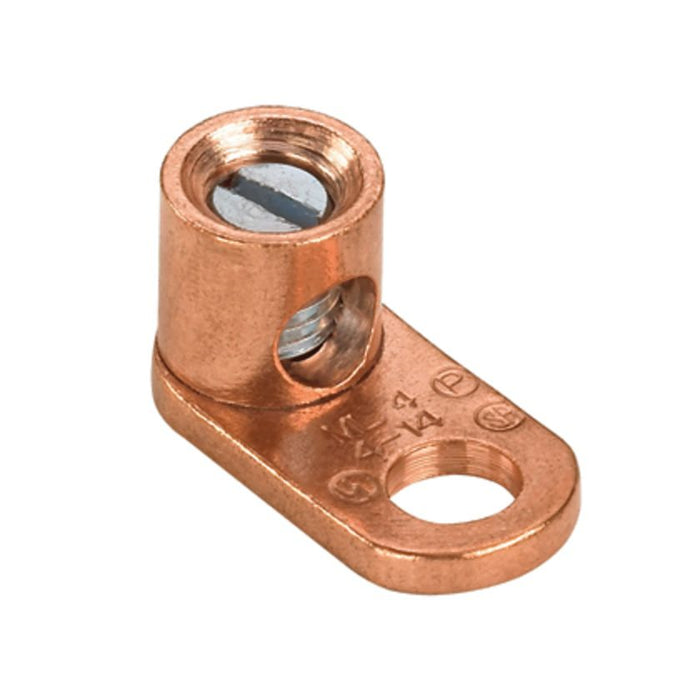

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit ML8-CY
One-hole, copper, single barrel post lug, straight tongue, #14 SOL - #8 STR, 3/16 (4.8mm) stud hole.
| Note | ML8-CY replaces ML8-C, PNL-8-C |
| Product Type | Mechanical Connectors - Lugs |
| Stud Hole Size (In.) | 3/16 |
| Number of Holes | 1 |
| Tongue Type | Straight Tongue |
| Tongue Length (In.) | 0.48 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Width (In.) | 0.38 |
| Tongue Width (mm) | 9.7 |
| Overall Height (In.) | 0.42 |
| Overall Height (mm) | 9.7 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| UL Temperature Rating (°C) | 90 |
| Sub Brand | Pan-Lug |
| Part Features | Wire range taking,inspection window,high strength copper,compact design,flat for complete surface contact. |
