![Panduit lugs [LCMB10-6-L], PAE615](http://nguyenxuong.com/cdn/shop/products/MFG_LCMB_20Series_53ff2efe-35d6-48fa-8879-2d3aeaa675d0_640x640.jpg?v=1597682190)

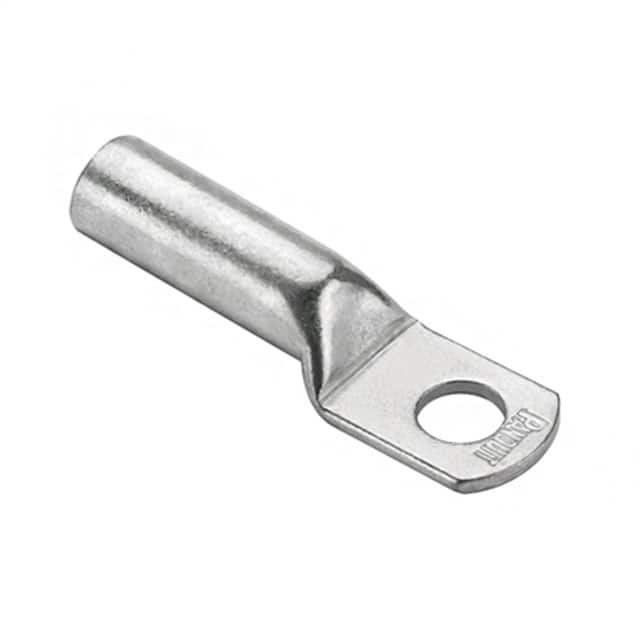

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMB10-6-L
One-hole, metric conductor, long barrel, 10mm² 2r, 10mm² class 5f/6f, M6 stud hole.
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Tongue Thickness (mm) | 1.2 |
| Overall Length (mm) | 43.8 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (mm) | 24 |
| Finish/Coating | Tin Plated |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Sub Brand | Pan-Lug |
| Wire Strip Length (mm) | 25.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel. |
