Mechanical & Compression Lugs & Splices > Mechanical & Compression Lugs & Splices

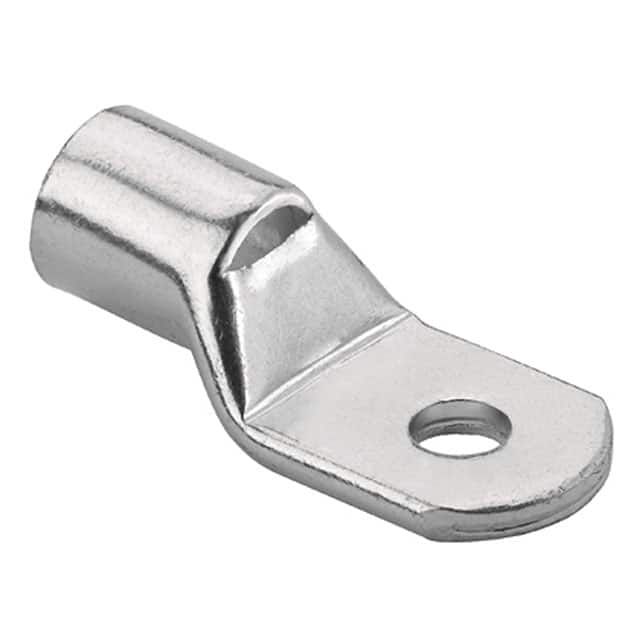

Panduit lugs [LCMA400-16-5], PAE322

by Panduit
705.800₫
(Giá chưa VAT).
Mã kho: PAE322

Mã nhà sản xuất: LCMA400-16-5

Đơn vị tính: PC

Quy cách đóng gói: 5

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMA400-16-5

MÔ TẢ SẢN PHẨM

One-hole, metric conductor, standard barrel with window lug, 400mm² wire, M16 stud hole.

_THÔNG SỐ KỸ THUẬT:

Product Type Tin-Plated CopperCompression Connectors - Metric Lugs
Tongue Type Standard
Tongue Thickness (mm) 7.5
Overall Length (mm) 107
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (mm) 44.8
Sub Brand Pan-Lug
Wire Strip Length (mm) 46.3
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window.
