![Panduit lugs [LCMA16-5-C], PAE312](http://nguyenxuong.com/cdn/shop/products/MFG_LCMA-Series_40dc69a9-ebaf-4678-b7e7-0b92ee2fcdb8_640x640.jpg?v=1597682160)

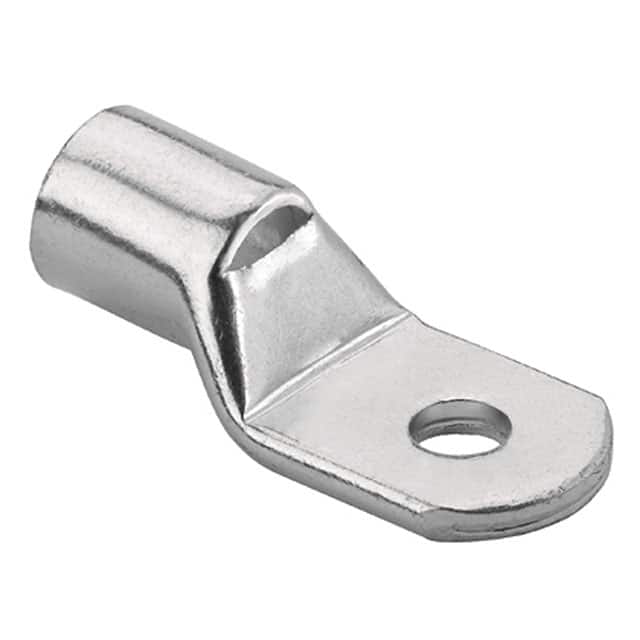

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCMA16-5-C
One-hole, metric conductor, standard barrel with window lug, 16mm² wire, M5 stud hole.
| Product Type | Tin-Plated CopperCompression Connectors - Metric Lugs |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (mm) | 34.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (mm) | 14.5 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Amperage (A) | 65 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (mm) | 16 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window. |
