![Panduit lugs [LCDXN750-12-3], PAE302](http://nguyenxuong.com/cdn/shop/products/MFG_LCDXN750-12-3_640x640.jpg?v=1597682158)

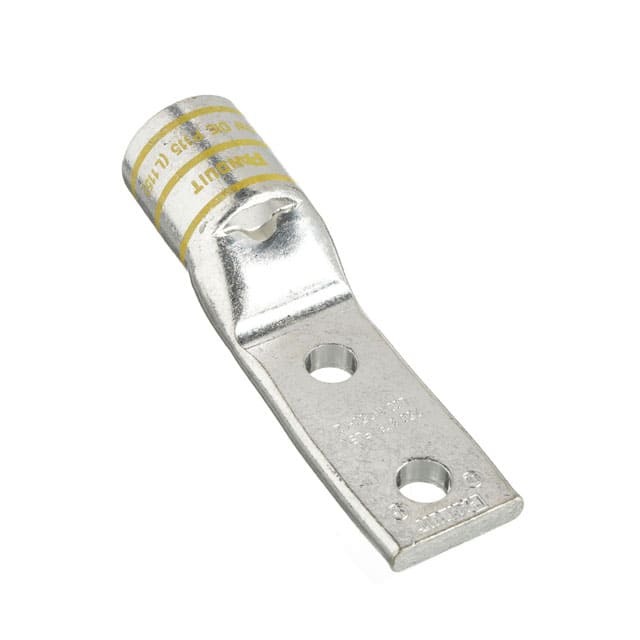

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDXN750-12-3
The two-hole standard barrel copper compression flex lug with inspection window and narrow tongue has a diesel locomotive flex conductor size of 777.7 kcmil. The stud hole is 1/2 (12.7mm) with a 1.75 (44.45mm) hole spacing.
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.35 |
| Tongue Thickness (mm) | 8.9 |
| Tongue Width (In.) | 1.5 |
| Tongue Width (mm) | 38.1 |
| Overall Length (In.) | 5.55 |
| Overall Length (mm) | 141 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.66 |
| Barrel Length (mm) | 42.2 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 45 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
