![Panduit lugs [LCDX750-12G-3], PAE280](http://nguyenxuong.com/cdn/shop/products/MFG_LCDX750-12G-3_640x640.jpg?v=1597682160)

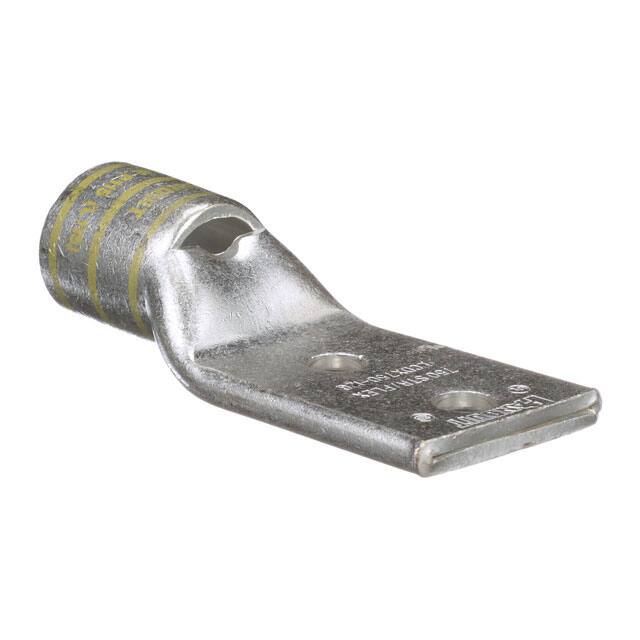

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDX750-12G-3
Two-hole, flex lug, 750 kcmil cable, 1/2 stud hole, 1.50 hole spacing.
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.5 |
| Stud Hole Spacing (mm) | 38.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.66 |
| Barrel Length (mm) | 42.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 2.17 |
| Tongue Width (mm) | 55.1 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Overall Length (In.) | 5.31 |
| Overall Length (mm) | 134.9 |
| Color Code | Yellow |
| Panduit Die Index Number | P115 |
| Burndy Die Index Number | L115 |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 45 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
