![Panduit lugs [LCD500-12E-6], PAC790](http://nguyenxuong.com/cdn/shop/products/205748_Panduit_LCD2_0_12_X_700x700.jpg?v=1597672077)

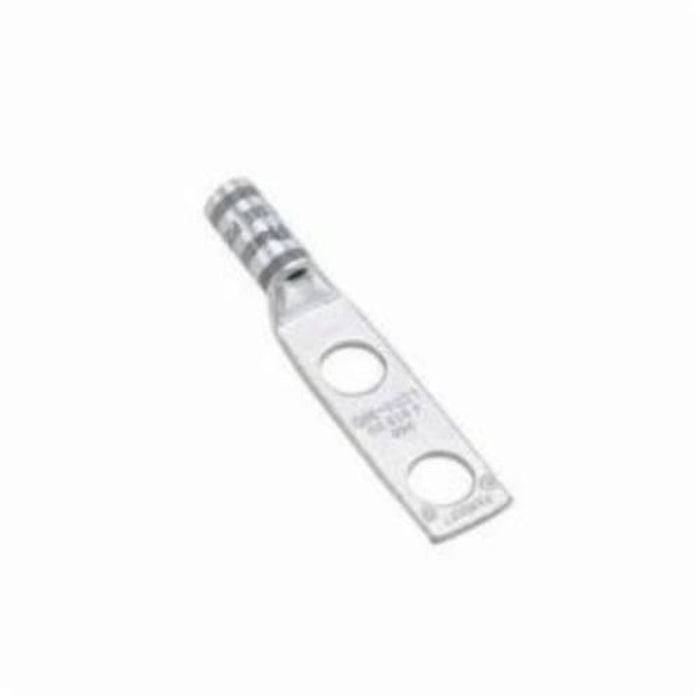

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD500-12E-6
Two-hole, standard barrel lug with window, 500 kcmil cable, 1/2 stud hole, 1.25 hole spacing.
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.25 |
| Stud Hole Spacing (mm) | 31.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 4.74 |
| Overall Length (mm) | 120.4 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Wire Strip Length (In.) | 1.81 |
| Wire Strip Length (mm) | 46 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
