![Panduit lugs [LCD400-12-6], PAC782](http://nguyenxuong.com/cdn/shop/products/LCDX350-38-6_640x640.jpg?v=1597681874)

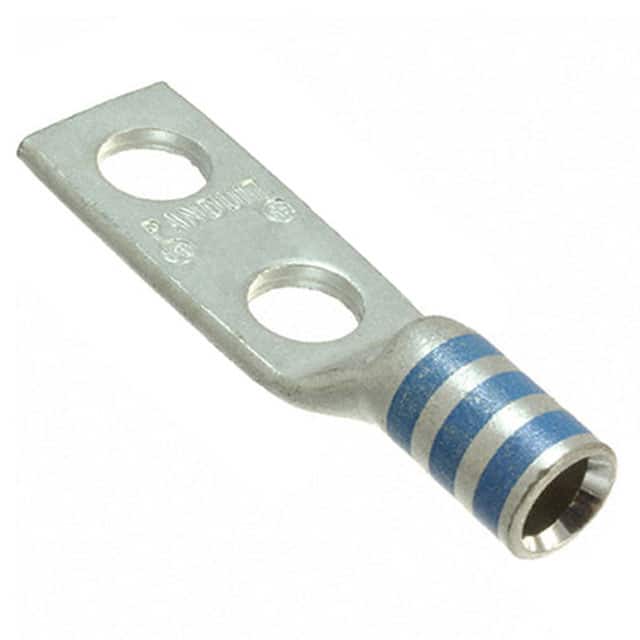

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD400-12-6
Two-hole, standard barrel lug with window, 400 kcmil cable, 1/2 stud hole, 1.75 hole spacing, NEMA hole sizes and spacing.
| Copper Conductor Size (kcmil) | 400 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.5 |
| Barrel Length (mm) | 38.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 5.04 |
| Overall Length (mm) | 128 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 39.7 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
