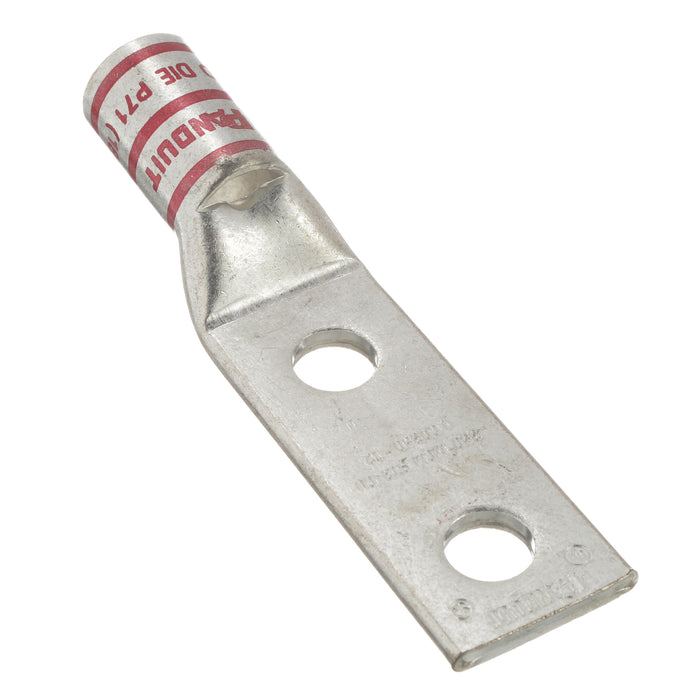

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD350-56B-X
Copper Compression Lug, 2 Hole, 350 kcmil Code Conductor, Standard Barrel, 5/16" Stud, .75" Hole Spacing
| Lug Type | 2 Stud Hole Lug |
| Sub Brand | PAN LUG |
| Stud Hole Size (mm) | 7.9375 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.05 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.44 |
| Barrel Length (mm) | 36.576 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.512 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.318 |
| Overall Length (In.) | 3.72 |
| Overall Length (mm) | 94.488 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia |
| Maximum Voltage (kV) | 35 |
| Color Code | Red |
| Panduit Die Index Number | P71 |
| Burndy Die Index Number | 18 |
| T & B Die Index Number | 71 |
| Wire Strip Length (mm) | 1.5 |
