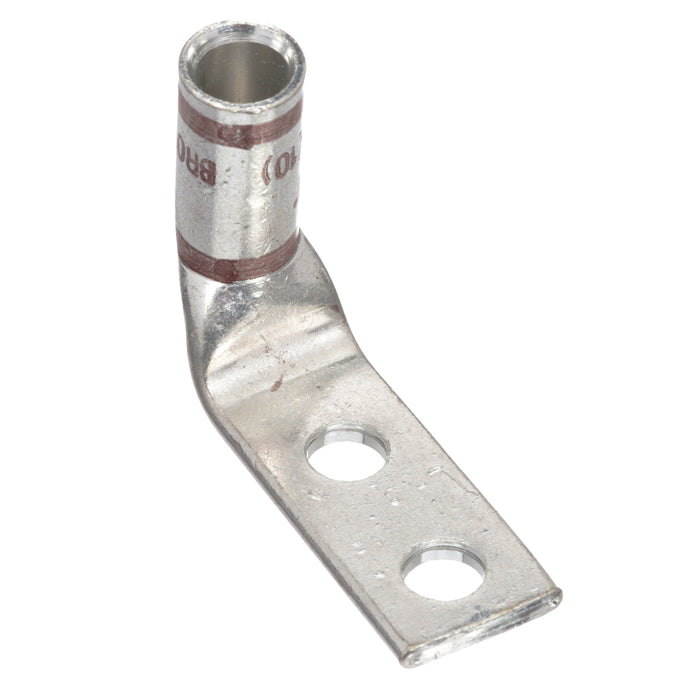

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD2-56DF-Q
Copper Compression Lug, 2 Hole, #2 AWG Code Conductor, Standard Barrel, 5/16" Stud, 1" Hole Spacing, 90° Bent
| Lug Type | 2 Stud Hole Lug |
| Sub Brand | PAN LUG |
| Stud Hole Size (mm) | 7.9375 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.352 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.764 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.54 |
| Overall Length (In.) | 2.36 |
| Overall Length (mm) | 59.944 |
| Finish/Coating | Tin-Plated |
| Standards Met | UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| T & B Die Index Number | 33 |
| Wire Strip Length (mm) | 0.938 |
