Mechanical & Compression Lugs & Splices > Mechanical & Compression Lugs & Splices

Panduit lugs [LCD1000-12-3], PAC713

by Panduit
1.575.000₫
(Giá chưa VAT).
Mã kho: PAC713

Mã nhà sản xuất: LCD1000-12-3

Đơn vị tính: PC

Quy cách đóng gói: 3

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD1000-12-3

MÔ TẢ SẢN PHẨM

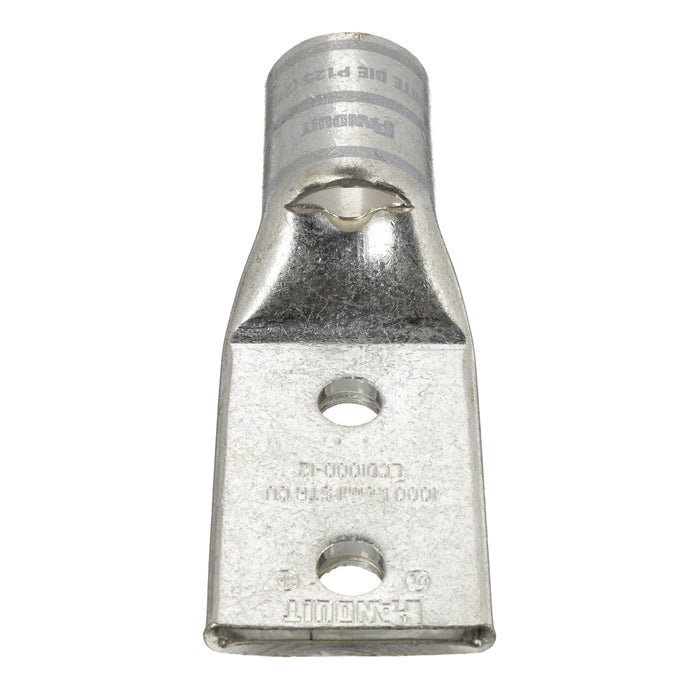

Two-hole, standard barrel lug with window, 1000 kcmil cable, 1/2 stud hole, 1.75 hole spacing, NEMA hole sizes and spacing.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (kcmil) 1000
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.767
Stud Hole Size (mm) 12.7
Stud Hole Spacing (In.) 1.75
Stud Hole Spacing (mm) 44.5
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.88
Barrel Length (mm) 47.8
Tongue Type Standard
Tongue Width (In.) 2.17
Tongue Width (mm) 55.1
Tongue Thickness (In.) 0.32
Tongue Thickness (mm) 8.1
Overall Length (In.) 5.77
Overall Length (mm) 146.6
Color Code White
Panduit Die Index Number P125
Burndy Die Index Number 27
Wire Strip Length (In.) 1.94
Wire Strip Length (mm) 49.2
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
