Panduit LCD Series Uninsulated Tubular Ring Terminal, 1/4in Stud Size, Silver [LCD10-14A-L]; 847-8763

Name: Panduit LCD Series Uninsulated Tubular Ring Terminal, 1/4in Stud Size, Silver [LCD10-14A-L]; 847-8763
Brand: Panduit
SKU: 8478763
Price: 171400.0 VND
Availability: InStock

by Panduit

171.400₫

(Giá chưa VAT).

Mã kho: 8478763

Mã nhà sản xuất: LCD10-14A-L

Đơn vị tính: Each

Quy cách đóng gói: 50

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD10-14A-L

MÔ TẢ SẢN PHẨM

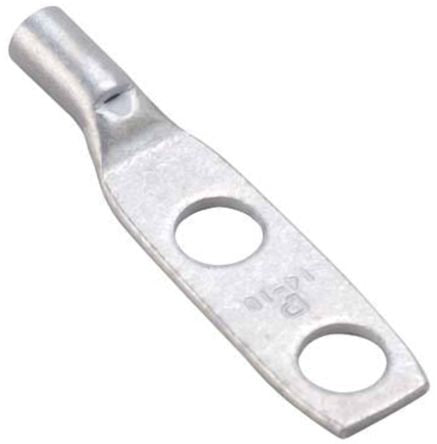

The LCD10-14A-L Tin-Plated Copper Compression Connector Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength an

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.13
Inside Diameter (mm)	3.3
Outer Diameter (In.)	0.22
Outer Diameter (mm)	5.58
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	2 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (AWG)	10
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/4
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	16
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.38
Barrel Length (mm)	9.7
Tongue Type	Standard
Tongue Width (In.)	0.42
Tongue Width (mm)	10.7
Tongue Angle	Straight
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Overall Length (In.)	1.78
Overall Length (mm)	45.2
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Wire Strip Length (In.)	7/16
Wire Strip Length (mm)	11.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
