Panduit LCD Series Uninsulated Tubular Ring Terminal, 5/16in Stud Size, Silver [LCD1-56C-E]; 847-8732

Name: Panduit LCD Series Uninsulated Tubular Ring Terminal, 5/16in Stud Size, Silver [LCD1-56C-E]; 847-8732
Brand: Panduit
SKU: 8478732
Price: 153500.0 VND
Availability: InStock

by Panduit

153.500₫

(Giá chưa VAT).

Mã kho: 8478732

Mã nhà sản xuất: LCD1-56C-E

Đơn vị tính: PC

Quy cách đóng gói: 20

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD1-56C-E

MÔ TẢ SẢN PHẨM

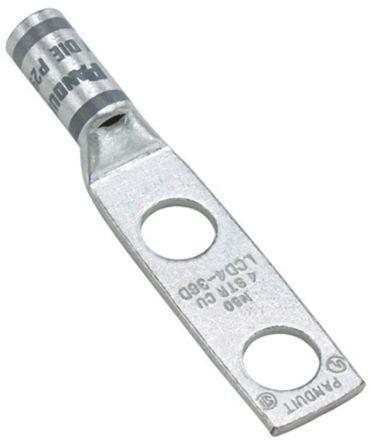

Two-hole, standard barrel lug with window, #1 AWG wire, 5/16 stud hole, .88 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG)	#1
Copper Conductor Size (kcmil)	84
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Stud Hole Spacing (In.)	0.88
Stud Hole Spacing (mm)	22.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Standard
Tongue Width (In.)	0.7
Tongue Width (mm)	17.8
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	2.79
Overall Length (mm)	70.9
Color Code	Green
Panduit Die Index Number	P37
Burndy Die Index Number	11
Wire Strip Length (mm)	23.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
