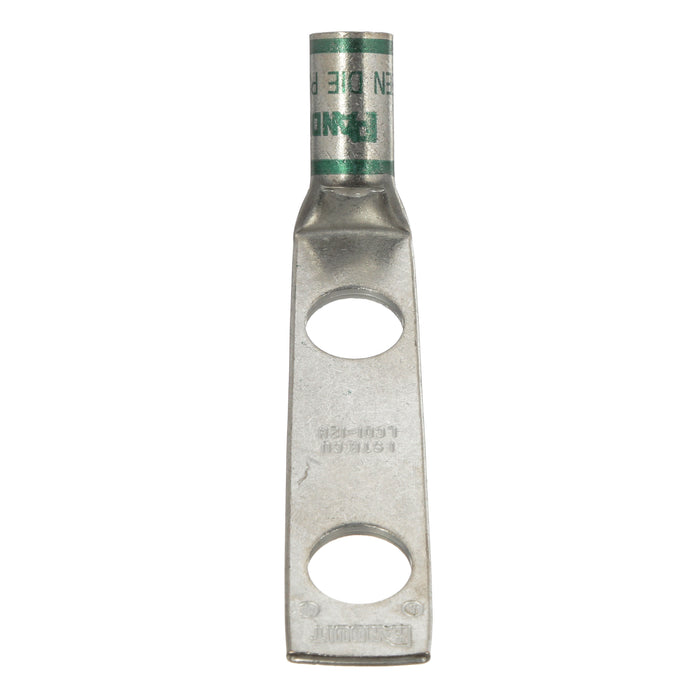

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD1-12H-E
Two-hole, standard barrel lug with window, #1 AWG wire, 1/2 stud hole, 1 .75 hole spacing, 45° angle tongue.
| Copper Conductor Size (AWG) | #1 |
| Copper Conductor Size (kcmil) | 84 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 3.87 |
| Overall Length (mm) | 98.3 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (mm) | 23.8 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
