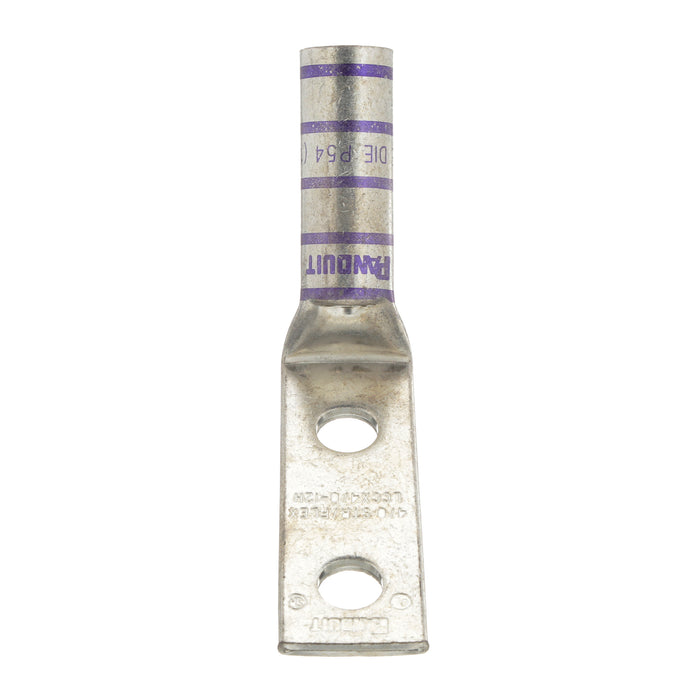

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCCX4/0-12H-X
Two-hole, flex lug, long barrel, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing, 45° angle tongue.
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 2.24 |
| Barrel Length (mm) | 56.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 5.11 |
| Overall Length (mm) | 129.8 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 2.31 |
| Wire Strip Length (mm) | 59 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry. |
