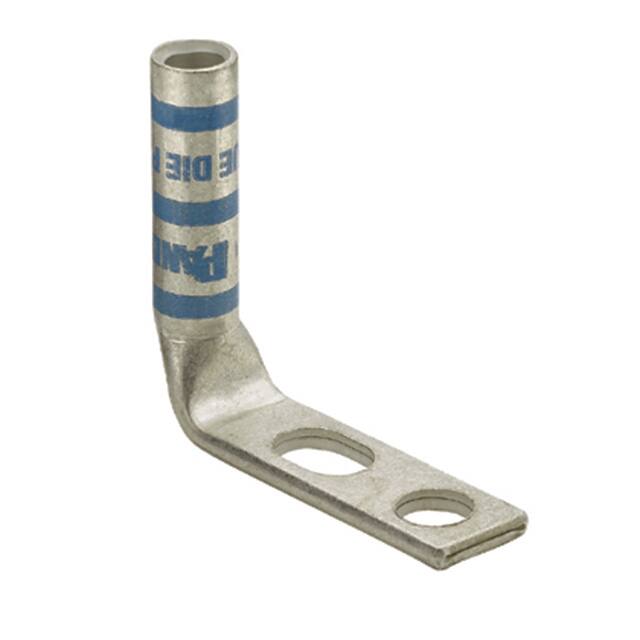

![Panduit lugs [LCC6-14JAWF-L], PAC619](http://nguyenxuong.com/cdn/shop/products/MFG_LCC6-14JAWF-L_640x640.jpg?v=1597681835)
Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC6-14JAWF-L
Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 — .63 hole spacing, 90° angle tongue.
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Long Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.07 |
| Barrel Length (mm) | 27.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.66 |
| Overall Length (mm) | 42.2 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 1.13 |
| Wire Strip Length (mm) | 28.6 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3. |
