Panduit lugs [LCC350-12W-X], PAC545

Name: Panduit lugs [LCC350-12W-X], PAC545
Brand: Panduit
SKU: PAC545
Price: 416200.0 VND
Availability: InStock

by Panduit

416.200₫

(Giá chưa VAT).

Mã kho: PAC545

Mã nhà sản xuất: LCC350-12W-X

Đơn vị tính: PC

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC350-12W-X

MÔ TẢ SẢN PHẨM

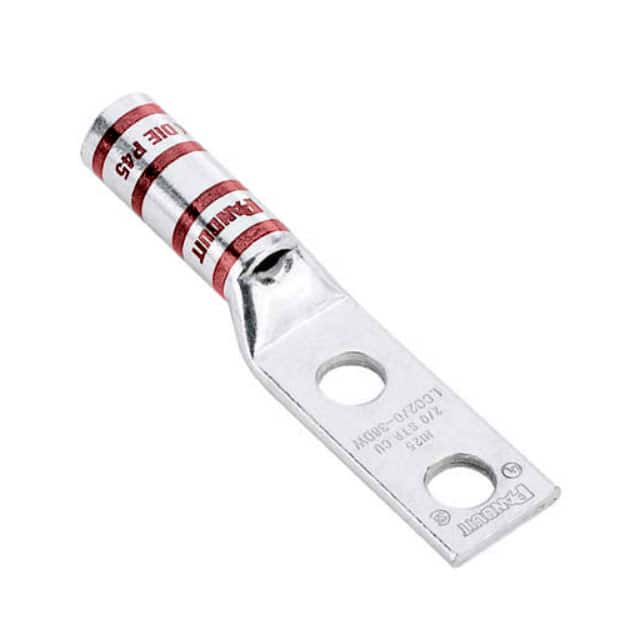

The LCC350-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	0.7
Inside Diameter (mm)	17.78
Outer Diameter (In.)	0.88
Outer Diameter (mm)	22.35
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	2 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (kcmil)	350
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel with Inspection Window
Barrel Length (In.)	2.24
Barrel Length (mm)	56.9
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	5.76
Overall Length (mm)	146.3
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
T & B Die Index Number	18
Wire Strip Length (In.)	2-5/16
Wire Strip Length (mm)	58.7
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
