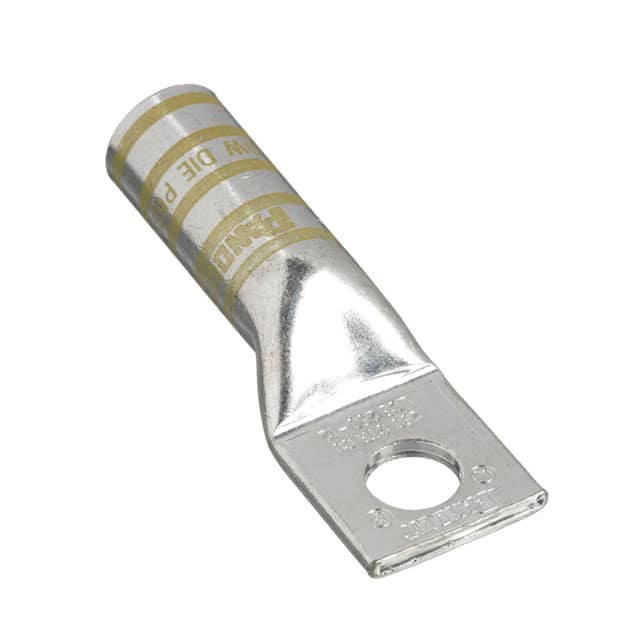

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCBH250-12-X
One-hole, long barrel lug with corona relief taper, 250 kcmil cable, 1/2 stud hole.
| Copper Conductor Size (kcmil) | 250 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Barrel Type | Long Barrel Length without Inspection Window |
| Barrel Length (In.) | 1.61 |
| Barrel Length (mm) | 40.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 3.32 |
| Overall Length (mm) | 84.3 |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| Color Code | Yellow |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
| Wire Strip Length (In.) | 1.69 |
| Wire Strip Length (mm) | 42.9 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel. |
